| standard | optional | |||||
| Column | Two-stage: Q235 steel tube: outer tube 50*80*1.5mm, inner tube 45*75*1.5mm Three-stage: Q235 steel tube: outer tube 50*80*1.5mm, middle tube 45*75*1.5mm, inner tube 40*70*1.5mm |
|||||
| Base | Q235 steel tube 75*25*1.5mm | |||||
| Top bracket | Q235 steel plate, bent, 2.5mm thick | |||||
| Cross beam | Q235 steel plate, bent, 1.5mm thick with groove + 20*40*1.5mm tube, adjustable | |||||
| Foot pads | ABS | |||||
| Lifting system | Dual motor lifting | |||||
| Dual motor max load | 120kg | |||||

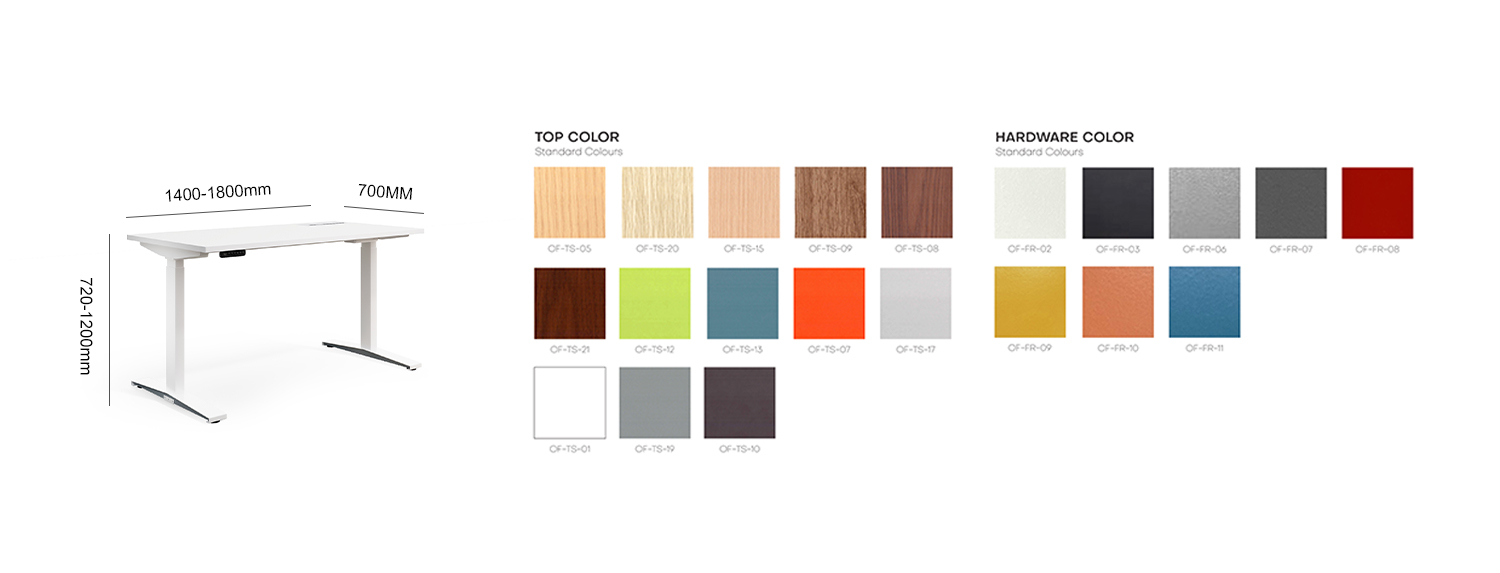

| Two-stage lifting height | 720-1200mm | |||||
| Three-stage lifting height | 620-1250mm | |||||
